DOG PARK WATER FOUNTAIN

SAMPLE INSTALLATION

PLAN NOTES:

1. Full ADA Accessibility will require additional ADA compliant surfacing to allow access to the drinking fountain/push button and the pet fountain push button.

 2. Slope surface away from fountain base at 2% slope



DESIGN NOTES:

 1. Water supply line depth shall be according to local regulating codes and size shall be according to fountain model specifications

 2. Drain pipe size shall be according to fountain model specifications

 3. Dry well size should be adjusted according to local regulating codes or recommendations, and/or may require modification to ensure adequate infiltration rate based on local soil and environmental conditions.

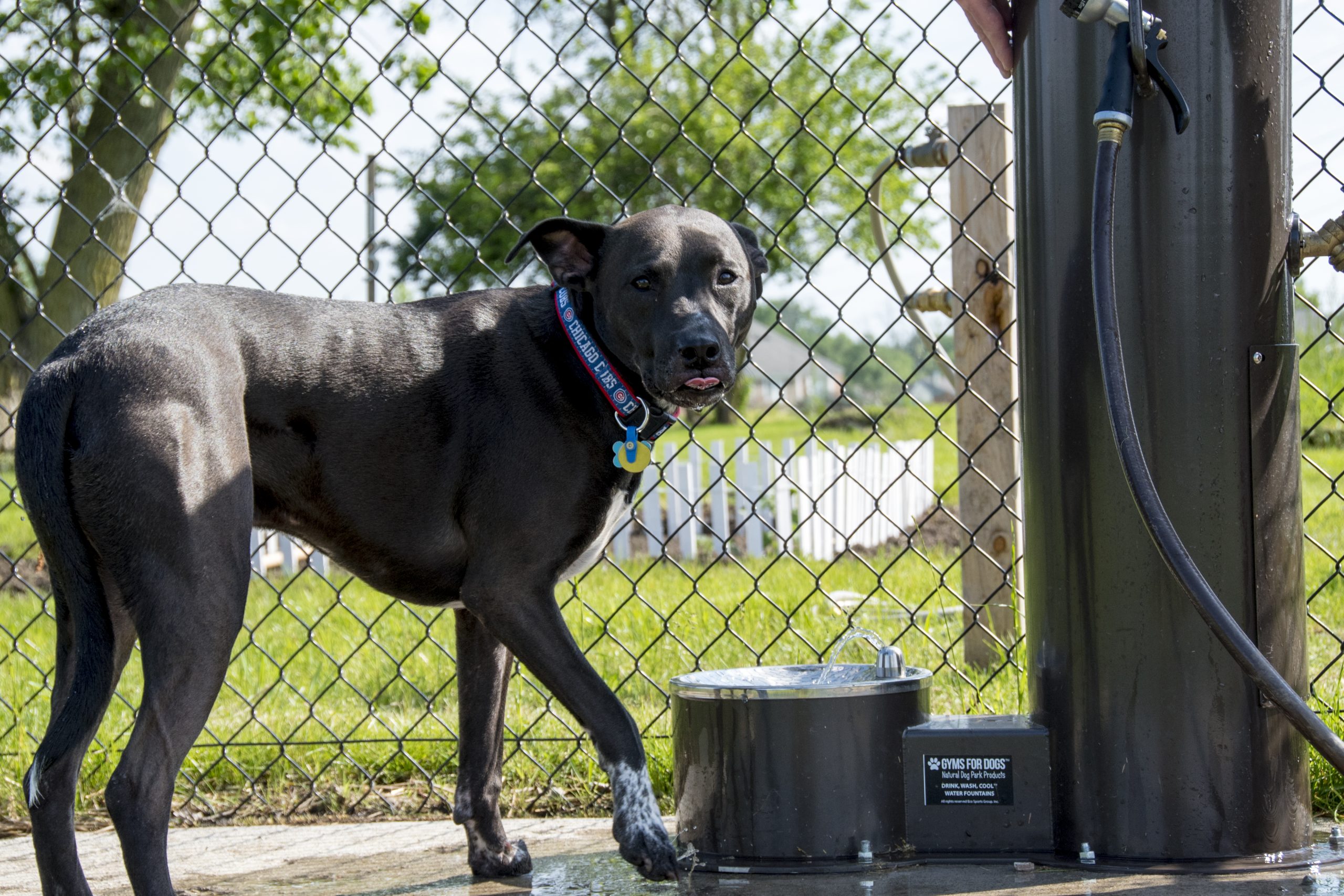

Dog Water Fountain - Drinking Dog
Dog water fountain - pad design
